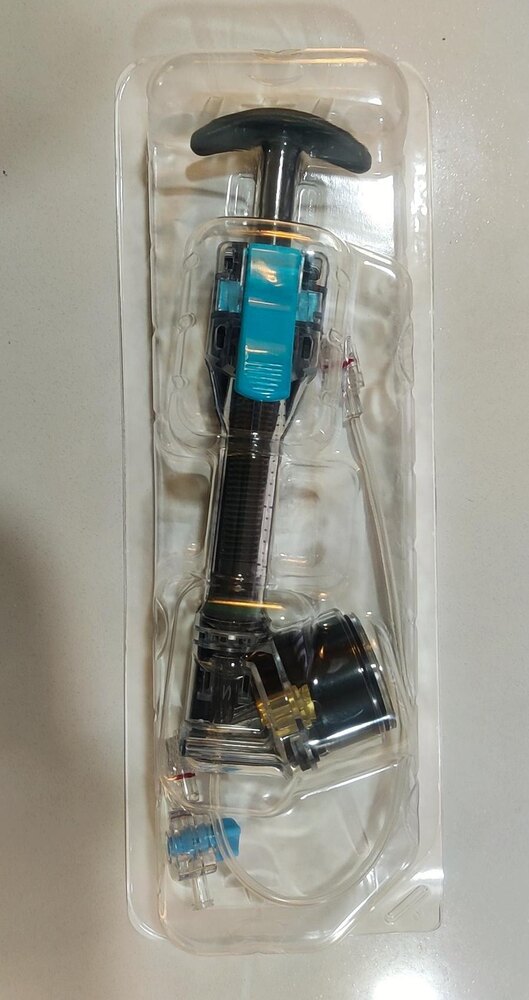

Brosmed Inflation Device

Brosmed Inflation Device Specification

Storage Instructions
Store in a cool, dry place, away from direct sunlight

Instruments Type
Medical Inflation Device

Display Type
Analog Gauge

Features
Precise pressure control, Ergonomic handle, Clear analog gauge, Luer lock connector, Rapid deflation, Leak-proof system

Measurement Range
0 - 30 atm (0 - 441 psi)

Function
Provides controlled inflation and deflation of balloon catheters

Usage Type
Single patient use

Shelf Life
3 Years

Accuracy
2% of full scale

Equipment Type
Inflation Device

Material
Plastic, Metal (Polycarbonate handle and stainless steel parts)

Condition
New

Technology
Manual Pressure Inflation with Analog Gauge

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent Operation

Operating Type
Manual

Use
Angioplasty procedures, Balloon inflation and deflation

Power Source
Manual

Dimension (L*W*H)
Approx. 230 mm 87 mm 53 mm

Weight
Approx. 300 g

Color
Blue and Transparent

Pressure Gauge Type
Rotatable analog dial, 30 atm capacity

Deflation Mechanism
Rapid release trigger

Connector Type
Standard 3-way Luer lock

Handle Design
Ergonomic, anti-slip for precise control

Package Contents
1 Inflation device, 1 extension tube

Compliance
CE Marked, ISO 13485 Certified

Min Graduation
1 atm (14.7 psi)

Max Inflation Pressure
30 atm (441 psi)

Sterilization
EtO sterilized

Brosmed Inflation Device Trade Information

Minimum Order Quantity
100 Packs

FOB Port
AHMEDABAD

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)

Delivery Time
3 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Box

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Brosmed Inflation Device

The Brosmed Inflation Device is a medical tool used in interventional procedures, primarily for balloon angioplasty and other catheter-based treatments. It is designed to control the inflation and deflation of balloons, such as those used in coronary, peripheral, and other vascular interventions. The device is essential for delivering precise and regulated pressure to ensure optimal results during procedures aimed at treating narrowed or blocked arteries.

The Brosmed Inflation Device provides clinicians with the ability to monitor and adjust balloon pressure in real-time, which is crucial for safely dilating blood vessels without causing damage to the surrounding tissue. Its intuitive design typically features a pressure gauge to allow healthcare professionals to track and maintain the appropriate pressure levels throughout the procedure, reducing the risk of complications like vessel rupture or under-inflation.

One of the key features of the Brosmed Inflation Device is its durability and reliability under high-pressure conditions. It is often used in complex cases where precise balloon inflation is necessary, such as in the treatment of resistant or heavily calcified lesions. The device is also designed for ease of use, allowing the healthcare team to operate it quickly and efficiently, which is important during time-sensitive procedures.

In summary, the Brosmed Inflation Device is an essential tool for performing balloon dilation in a controlled and safe manner, contributing to improved outcomes in vascular interventions and ensuring patient safety during these critical procedures.

Superior Pressure Control for Balloon Procedures

Brosmed's Inflation Device sets a standard for balloon inflation during angioplasty by providing real-time, accurate pressure control. The analog gauge, with 1 atm resolution and up to 30 atm capacity, ensures safe and dependable performance in high-pressure environments. Its ergonomic, anti-slip handle enhances grip and precision, vital for demanding clinical settings.

Designed for Efficiency and Safety

Equipped with a rapid release trigger for swift deflation and a leak-proof system, the device guarantees both efficiency and patient safety. The standard 3-way Luer lock ensures secure, hassle-free connections, while its sterile, single-use design prevents cross-contamination. Its silent operation and portability make it ideal for busy hospitals and clinics.

Built to Last and Easy to Use

Constructed from high-quality polycarbonate and stainless steel, the Brosmed Inflation Device is both robust and lightweight. Its clear analog display and ergonomic design suit both novice and experienced medical staff. Designed for intuitive use, it minimizes learning time and maximizes workflow efficiency.

FAQ's of Brosmed Inflation Device:

Q: How does the Brosmed Inflation Device ensure precise pressure control during angioplasty procedures?

A: The device features a rotatable analog pressure gauge with 1 atm graduation and up to 30 atm capacity, allowing clinicians to monitor and control inflation pressure with high accuracy (within 2% of full scale) for safe balloon inflation and deflation.

Q: What is included in the Brosmed Inflation Device package?

A: Each package contains one sterilized inflation device and one extension tube, both intended for single-patient use to promote infection control and compliance with medical standards.

Q: When should the inflation device be used during a procedure?

A: The device is used during angioplasty or similar procedures requiring controlled inflation and deflation of balloon catheters, ensuring precise pressure application and rapid deflation for efficient workflow.

Q: Where can this device be utilized in a hospital setting?

A: It is suited for use in catheterization labs, operating rooms, or any setting where balloon catheters are required. Its portability and manual operation also allow for use in different departments without dependence on external power.

Q: What benefits does the ergonomic anti-slip handle offer?

A: The ergonomic, anti-slip handle provides enhanced comfort and secure grip, enabling healthcare professionals to maintain precise control over inflation, especially during delicate manipulations.

Q: How is the device sterilized and how should it be stored?

A: It is EtO sterilized for safe, single-patient use. The device should be stored in a cool, dry place away from direct sunlight to maintain its integrity during its 3-year shelf life.

Q: What mechanisms are in place for rapid and safe deflation?

A: A rapid release trigger mechanism allows for swift, controlled deflation, aiding quick reaction in critical situations and promoting patient safety by minimizing procedural delays.
